Description

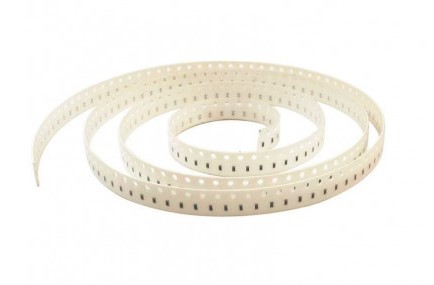

The 3M9 Ohm 1/8W 5% 0805 SMD Chip Resistor is a high-resistance component designed for use in electronic circuits that require a resistance of 3.9 million ohms (3.9MΩ). Its small package size and reliable performance make it an ideal choice for applications where precision and space efficiency are critical.

Key Specifications:

• Resistance Value: 3,900,000 Ohms (3.9M Ohms)
• Power Rating: 1/8 Watt (125 mW)
• Tolerance: ±5% (standard accuracy)
• Package Size: 0805 (compact, surface-mount form factor)
• Technology: Thick film

Features:

• Compact Design: The 0805 package is perfect for high-density PCB layouts, allowing it to be used in space-constrained electronic designs.
• Stable Performance: Delivers consistent resistance values even under varying temperature, humidity, and voltage conditions, ensuring long-term reliability.
• Automation-Compatible: Designed to work seamlessly with automated assembly processes such as pick-and-place and reflow soldering, improving manufacturing efficiency.
• Durability: Built to withstand harsh environmental factors, such as temperature extremes and moisture, ensuring reliable performance in a wide range of conditions.

Applications:

• Current Limiting: Regulates current flow to protect sensitive components from overcurrent conditions, preserving the circuit's integrity.
• Voltage Dividers: Used in voltage division networks for precise voltage regulation or scaling.
• Consumer Electronics: Common in compact devices like smartphones, wearables, tablets, and other small electronics where space and efficiency are essential.
• Automotive Electronics: Suitable for automotive control circuits, sensor systems, and other applications requiring high precision and durability.
• IoT and Embedded Systems: Perfect for low-power applications in IoT devices and embedded systems, where stable and precise resistance is necessary for optimal operation.

The 3M9 Ohm 1/8W 5% 0805 SMD Chip Resistor is a reliable and durable component for applications requiring a high resistance value in a compact package. Its small size, stable performance, and durability make it well-suited for a wide range of consumer electronics, automotive, IoT, and embedded systems where precise current and voltage control is necessary.
